Overview
Bike Track’s patented 2-inch standard flooring is an ideal choice when conditions require additional height to raise your surface off the ground and in-floor cable management is not necessary. It does a much better job of creating a rigid surface in soft or undulating ground than our 1-inch portable flooring. Some of the most common uses include field maintenance and garage facilities, living areas, storage areas, field and turf protection, and vehicle access roadways. Our 2-inch standard flooring can withstand ground pressures of up to 47,500 lb/sqft (given a solid subsurface); it is fully capable of supporting heavy vehicular traffic.
All of our standard flooring sheets can be rapidly installed without the use of tools thanks to the self-aligning friction-fit u-channels molded into each sheet.

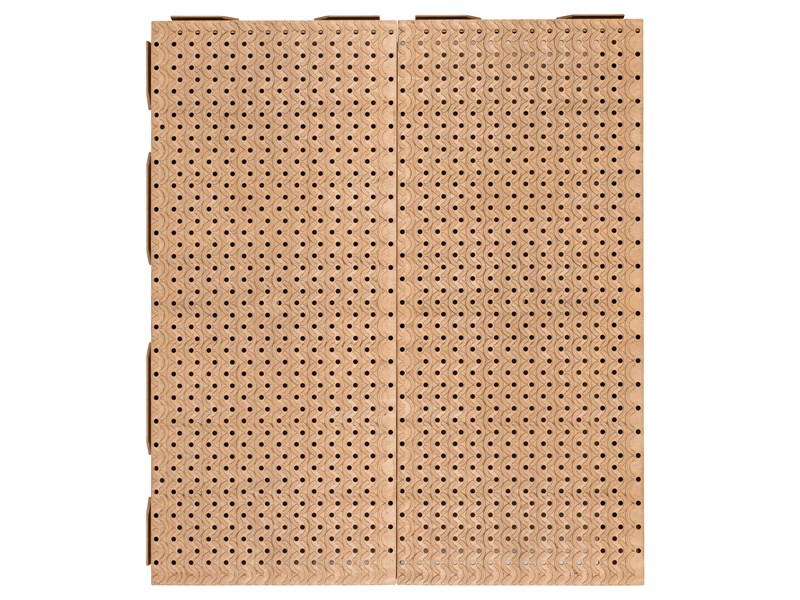

Each 2-inch sheet (4 ft x 3.5 ft) is made up of two identical panels (each 4 ft x 1.75 ft) that are connected together using the channels and removable plastic drift pins on the underside of the flooring. This provides for enhanced flexibility when designing your flooring layout.
Like all Bike Track plastic flooring products, our 2-inch sheets provide the following benefits:
- Fast Install and Strike: self-aligning connection channels require no tools. Average set up time ranges from 14 to 56 square feet (1.3 to 5.2 square meters) per minute per person.
- No Maintenance: sheets align, interlock and stack neatly on reusable pallets. Weather-proof and easily cleaned, palletized sheets can be stored anywhere.
- Versatile: easily configurable to a wide variety of layouts. Use inside or underneath tents (with or without fabric flooring) to create a platform to enable faster setup, protect shelters from damage, and keep them clean.
- Durable: supports vehicles, UV-degradation resistant, rot-proof, impervious to most chemicals, useable in any temperature or weather. All products warrantied for 5 years, although customers routinely enjoy 15+ years of sustained field use.
- Safe and Environmentally Friendly: products designed for use where grass and turf protection is important. All sheets include drainage holes, are anti-static treated, slip-resistant, and 100% recyclable.
Specifications
NSN: 5680-01-553-8740
Material: High-Density Polyethylene (HDPE)
Dimensions: US: 4 ft x 3.5 ft x 2 inch (14 square feet)
(1 sheet) Metric: 1.22 m x 1.07 m x 5.08 cm (1.3 square meter)
Weight: US: 34 lb
(1 sheet) Metric: 15.4 kg
Load US: 47,500 lb/square foot
Capacity: Metric: 231,915 kg/square meter
(static load, solid subsurface)
Shipping: 32 sheets per custom pallet
Maintenance: Sweep, brush, and water wash. Pressure wash as needed
Warranty: Flooring is warranted by the manufacturer against structural failure due to splintering, cracking, or damage caused by insects, rot, corrosion, or fungal decay for 5 years from date of purchase. The Manufacturer will replace any sheet that fails to perform to its original function due to any of the above conditions when installed and used in accordance with manufacturers specifications.
Accessories
Bike Track Tapered Edging for Two Inch Flooring:
6-inch-wide textured ABS plastic edge ramp provides easy access. Connects to outer edge of all 2 Inch flooring. There are four different types depending on which side of a flooring sheet it attaches to, contact us so we can help you identify the appropriate pieces for your specific project.
